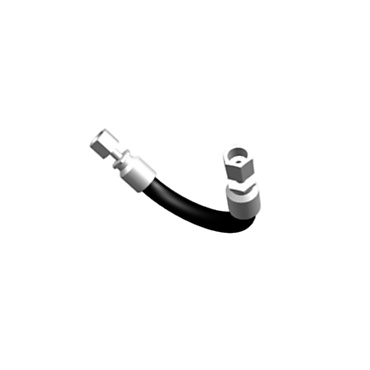

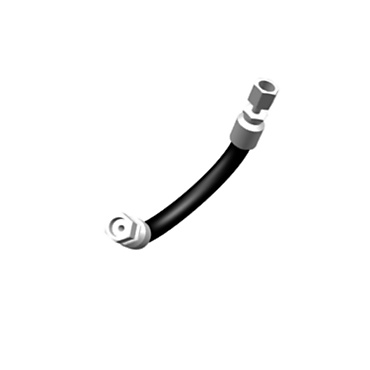

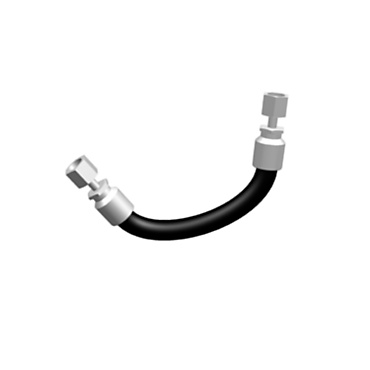

152-8368: Hose Assembly

Medium to High Pressure Hydraulic Hose Assembly

Category:

Description:
Channels petroleum or water-based hydraulic fluids, water-glycol and water-oil fire resistant hydraulic fluids, hot oil, grease, lubricants, crude and fuel oils, air and water.

Attributes:
Constructed with an oil resistant synthetic rubber inner tube, two plies of special braided high tensile steel wire reinforcement separated by a synthetic rubber layer and an oil and weather resistant synthetic rubber outer cover. These features provide long life and excellent dependability.

Recommended Application:
Medium to High pressure service applications with repetitive flexing, cyclic impulse pressure surges, and vibration stresses.

Warning: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Cat® Hose Assembly Products WarningImproper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer’s couplings or the use of Caterpillar couplings with other manufacturer’s hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3.

  • Overall Length (mm): 355.6

  • Weight (kg): 0.277



Compatible Models for part number 152-8368

TRACK-TYPE TRACTOR

D1 D2 D3K2 LGP D3K2 XL D3K LGP D3K XL D3 D4K2 LGP D4K2 XL D4K LGP D4K XL D5K2 LGP D5K2 XL D5K LGP D5K XL D6K2 D6K2 LGP D6K2 XL D6K LGP D6K D6K XL D6R III D6T D7E D7E LGP D7R D7R II D8 D8R D8R II D8T D9T
